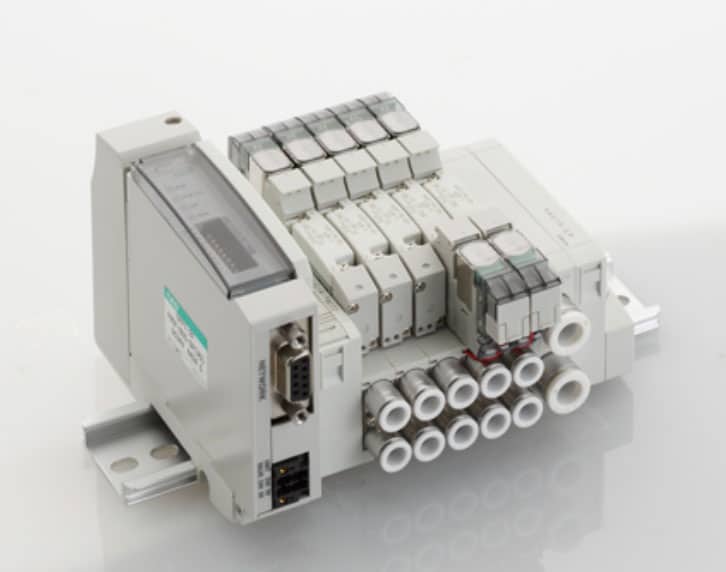

The 4G directional control valve provides an industry-leading, enduring design with a variety of features and options for basic to complex industrial automation needs.
Wide Range of Options
Wide variety of sizes and features
- 10mm, 15mm and 18mm size valves in 2 position/3 port, 2/5 and 3/5 directional valve function configurations
- Port sizes from #10-32 (M5) through 3/8 NPT
- 5 inch tubing sizes from 1/8” through 3/8”
- Metric ports and tubing sizes, too!
- Optional shut-off, supply, or exhaust for each individual valve in a manifold
- Hard-wired, DIN Connectors, or Molex®-type connectors for individual valve wiring

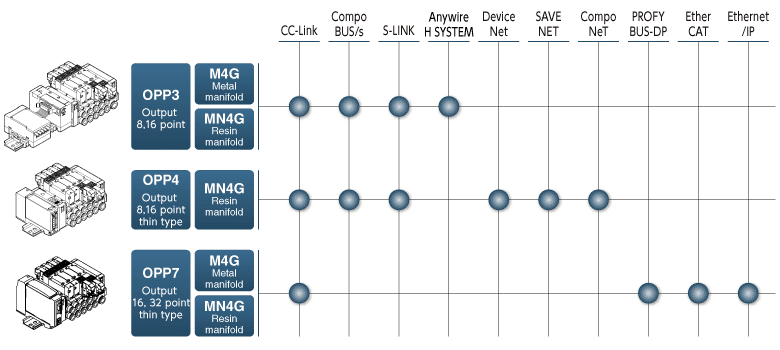

- DSub, Flat Cable connector or terminal block reduced wiring
- Application specific designs for Food Processing
- Application specific designs for Clean Room
- Satisfy your IoT needs with the new valve pressure sensor. This optional sensor mounts directly onto the valve body, monitors valve response time, communicating with your PLC when time exceeds programed limit. Learn More >
